| BRAND | Uwt |

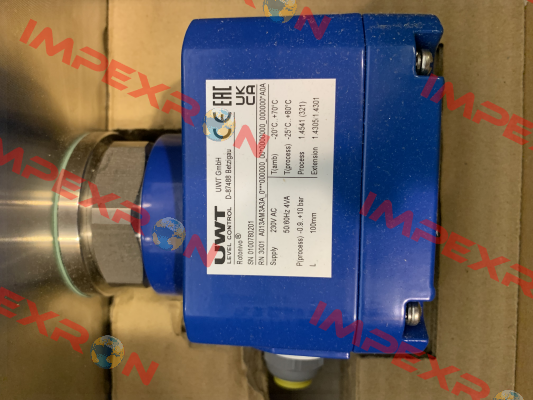

| Product | RN 3001A- 013AM3A3A |
| Description | Sensor for low level typ RN 3001 - A013AМ3A3A. Technical data - working temperature of the sensor from - 20° С to + 80° С - working pressure - max 10 bar; - power supply: 230 VAC; step of the motor 1 / min; option 24 VDC / 230 VAC; - montage - on flanges DN100 PN16, EN 1092-1 - stainlees steel St. 321; - material - wings - stainlees steel St. 303, body - metal; - length - 100mm - "wing" - Typ B; - explosion proof - no. |
| Internal code | IMP4737494 |
| Weight | 8.8 |
| Technical specification | ype: [A] RN 3001 Certificate: [0] CE / UKCA / TR-CU Process temperature: [1] max. +80°C (176°F) Process overpressure: [3] max. 10 bar (145.04 psi) Power supply: [A] 230 V AC 50-60 Hz 4 VA Process connection: [M] flange DN100 PN16, EN1092-1 Material process connection: [3] stainless steel Length of extension L: [A] 100 mm (3.94") Material of extension L: [3] stainless steel Measuring vane: [A] boot-shaped 40 x 98 mm (1.57 x 3.86") stainless steel, for 1½" socket Local Certificates: [0] without Bearing at tube end: [0] without Extension / flange welded: [0] without |
Temui kualiti dan prestasi unggulUwt RN 3001A- 013AM3A3A denganImpexron GMBH dalamSouth Africa . Sama ada anda mencari kebolehpercayaan atau kecekapan, produk ini memenuhi semua keperluan industri anda.
TheRN 3001A- 013AM3A3A direka untuk memberikan prestasi optimum dan ketahanan dalam pelbagai aplikasi. Dikenali dengan pembinaan berkualiti tinggi dan ciri-ciri inovatif, ia adalah pilihan utama untuk profesional.
Ciri-ciri UtamaRN 3001A- 013AM3A3A :
PadaImpexron GMBH , kami menawarkanRN 3001A- 013AM3A3A pada harga yang kompetitif dan dengan masa penghantaran terpantas di seluruhSouth Africa . Pasukan pakar kami bersedia untuk membantu anda dengan semua pertanyaan anda dan menyediakan penyelesaian yang disesuaikan untuk memenuhi keperluan khusus anda.
Mengapa MemilihImpexron GMBH ?
Dapatkan Sebut Harga Anda Hari Ini! Bersedia untuk meningkatkan operasi anda denganRN 3001A- 013AM3A3A ? Hubungi kami sekarang untuk sebut harga yang diperibadikan. Isi borang di bawah atau hantarkan e-mel kepada kami dengan pertanyaan anda. Biar kami membantu anda membuat pilihan yang menjimatkan kos dan dipacu kualiti untuk perniagaan anda.
Notis Penting: Semasa kami membekalkanUwt produk,Impexron GMBH bukan pengedar sah . Semua hak adalah terpelihara oleh pengilang dan rakan kongsi rasmi mereka.
You can purchase :product by :brand from Impexron GMBH.We serve customers across the South Africa, offering competitive prices and reliable service.
What is the price of :product?
For customised pricing and availability, please fill out our or give us a call. We are dedicated to providing solutions that align with your specific requirements.
While we are not the official distributor or seller of :brand in the South Africa, we source our products from reliable channels and offer you original :brand equipment at competitive prices.
You can access catalogues, user manuals, and technical documents for :product on our website. Visit our resources section or contact us directly for specific documents.
We can assist you in contacting the manufacturer to ensure you receive the support you need.
limit switches
ROTONIVO ROTATING PADDLE SWITCH
ROTONIVO ROTATING PADDLE SWITCH
ROTONIVO ROTATING PADDLE SWITCH
ROTONIVO ROTATING PADDLE SWITCH
ROTONIVO ROTATING PADDLE SWITCH
level control
(If you want 24 VDC, 220 VAC, if you want) Stainless, 80 deg C, 0.8 bar, 1.5 inch connection is 1000 mm, double flag, bearing exit
Rotating Paddle Level Limit Switch RN3002 BO32AF3Z3B-750mm
RN3002BS011AL3Z3A-L=600MM+POS.32
1SDA013509R1 250A
ROTONIVO ROTATING PADDLE SWITCH
WGRN3 LGRN3E 230 V AC
p:= 0,5 - 0,8 bar L:= 165mm
ROTONIVO ROTATING PADDLE SWITCH E = PIPE HORIZONTAL W = ATEX ZONE 20/21 DUST IGNITION PROOF 1 = MAX TEMP 176*F (80*C) 1 = MAX PRESS 11.6 PSI (0.8 BAR) F = 24V DC / 22...230V AC universal voltage Motor Speed:1/min A = G 1.5" THREAD PROCESS CONNECTION 1 = Aluminium PROCESS CONNECTION Q = SHAFT LENGTH 250 mm (9.84") 3 = STAINLESS STEEL SHAFT A = BOOT-SHAPED VANE 40 x 98mm (1.57 x 3.86")
ROTONIVO ROTATING PADDLE SWITCH E = PIPE HORIZONTAL W = ATEX ZONE 20/21 DUST IGNITION PROOF 1 = MAX TEMP 176*F (80*C) 1 = MAX PRESS 11.6 PSI (0.8 BAR) W = 24 VDC POWER SUPPLY, MOTOR SPEED 5 RPM A = G 1.5" THREAD PROCESS CONNECTION 3 = SS PROCESS CONNECTION Z = SHAFT LENGTH (500MM) 3 = STAINLESS STEEL SHAFT A = BOOT-SHAPED VANE FOR 1/5" SOCKET
Rotary level switch ·Atex Version ½ D Zone 20/21 ·Power supply “Universal voltage” 230Vac, 115Vac 24Vdc ·Output SPDT with 20 sec. Delay time ·Sensibility adjustment ( 3 step ) Process connection G 1 ½” in SS ·Reinforced pipi with berings and dust protection ·Lenght 1000 mm Vane 40x98 mm ·Diagnostic self control ·Sliding sleeve included
RN 4001
230v
